GF Solar Tracker Controller

GF tracking controller is a device that controls the PV modules so that the solar light shines vertically on the PV modules as much as possible. GF tracking controller can significantly improve the efficiency of the power generation.

* Smart control algorithm. Adopt time control + angle sensor to form closed-loop control, no Angle accumulation error, high-precision and reliable tracking.

* Comprehensive protection mechanism. Wind protection, snow protection, limit protection, over-current protection, over/under- voltage protection, etc.

* Fault self-diagnosis mechanism. System automatic detection, automatic judgment, automatic alarm, automatic recovery after troubleshooting, etc.

* Modular design, easier for on-site troubleshooting and maintenance.

* Working temperature: -40℃ ~ 60℃;

* Protection grade IP68, suitable for all kinds of outdoor environments;

11



GF Solar Tracker Controller

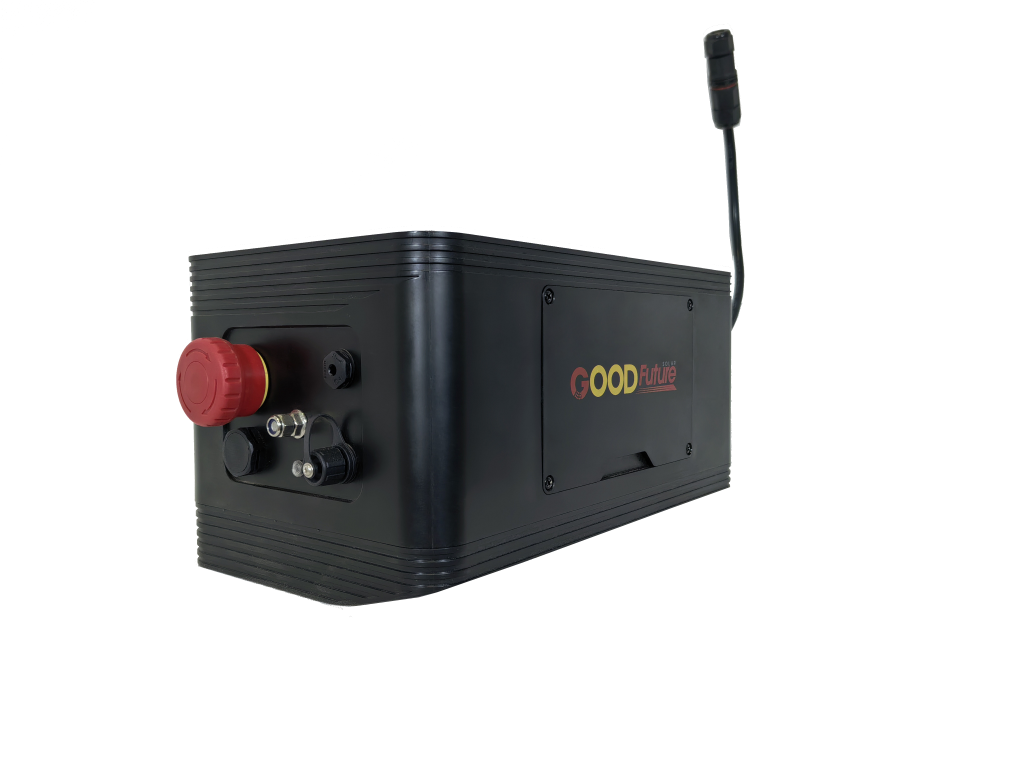

GF-AC-V1 AC-POWERED TCU

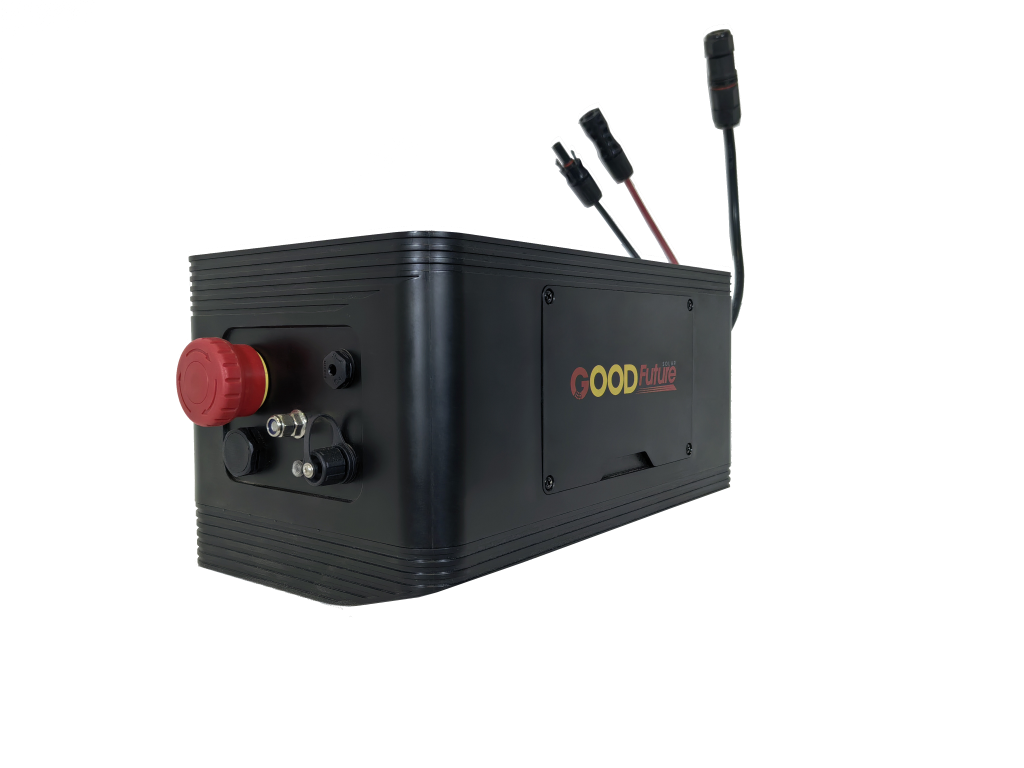

GF-S-V1 STRING-POWERED TCU
GF-EX-V1
STRING-POWERED TCU
EXTERNAL BATTERY BOX

GF Solar Tracker Controller Features

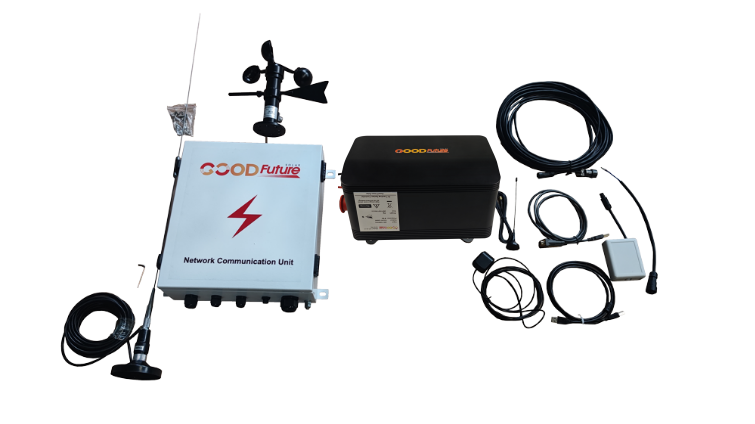

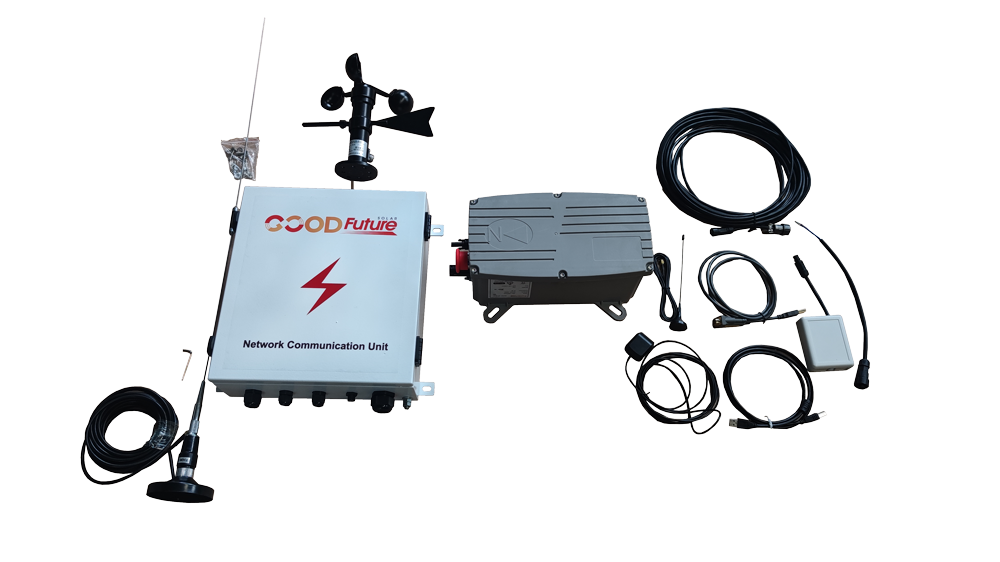

GF Solar Tracker Control System

GF Solar Tracker Controller Technical Parameters



GF-AC-V2 AC-POWERED TCU
Control Chip MCU Lithium Battery No
Control Algorithm

Astronomical algorithm + Tilt sensor, Backtracking algorithm

Driving System Slew Drive Motor/ Electrical Linear Actuator
Power Supply 220V(AC) Output Voltage 24V DC
Power Consumption ≤0.1kWh/Day Output Power ≤350W
Tracking Range ± 60° Tracking Accuracy ± 1°
Temperature Range -40℃~ +60℃ IP Grade IP65

GF-S-V2 STRING-POWERED TCU
Control Chip MCU Lithium Battery Yes
Control Algorithm Astronomical algorithm + Tilt sensor, Backtracking algorithm Driving System Slew Drive Motor/Electric Linear Actuator
Power Supply 300-1500VDC Output Voltage DC 24V
Power Consumption ≤0.1kWh/Day Output Power ≤300W
Tracking Range ± 60° Tracking Accuracy ± 1°
Temperature Range

-20℃~ +60℃

(Low-temperature version available)

IP Grade IP65

GF-EX-V1
STRING-POWERED TCU
EXTERNAL BATTERY BOX
Control Chip MCU Lithium Battery 5.8Ah(EXTERNAL)
Control Algorithm Astronomical algorithm + Tilt sensor, Backtracking algorithm Driving System Slew Drive Motor/Electrical Linear Actuator
Power Supply 300-1500VDC Output Voltage DC 24V
Power Consumption 0.2~0.5kWh/Day Output Power 200W
Tracking Range ± 60° Tracking Accuracy ± 1°
Temperature Range -40℃~ 60℃ IP Grade IP65
